Thanks for all your help! I will try to replace the drain pump soon.

How can I repay you?

Could this have to do with the water to filling up anymore since I took the dishwasher apart to identify the drainage issue?

1 & 2, 1 & 3 do not read

2 & 3 reads

I’m not sure where to apply my multimeter to test the coils

Closest thing I can find in this end sticking end which connects to the electronics.

Edit: Testing to the right metal parts of that connector gave me Ohms 128.8

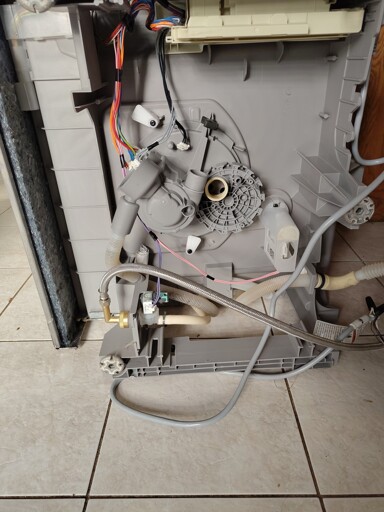

So you’re saying this part could be broken? Is this the drain pump?

Could it helps this part instead? What is this part called? Also a drain pump?

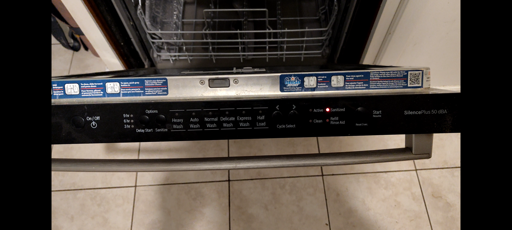

The active and clean lights are flashing. So is normal washing. I’m guessing the drain pump is bad. And I don’t see anything visibly clogging it.

Oh thank you. I understand better now.

The active and clean light are flashing which the others person shared from their diagram that it could be to drain pump.

Bosch SilencePlus 50 DBA shx3ar75uc/28

To guide mentions buttons I do not have in order to use special function menu.

I tried asking AI, and it mentioned holding left arrow plus right arrow, then turning to changing on, and clean should flash multiple LEDs.

Delicate wash flashes and express wash stays lit when doing this. Then pressing start lights both those LEDs. Then press start again, I can hear something clicking twice, then the active and clean LEDs flash including delicate and express wash.

And if I try doing a normal wash. Some thing but the sanitise light flashes. And no water this time

I’m not quiet sure how I would go about testing like that. And I never heard of working on a hot circuit.

I understand I could time the dishwasher and use that to help find what cycle it stops at.

These are the steps. It maybe stops somewhere between step S.02 - S.09

Edit: Changed the 5s to s

Like the end with the white hose here?

Water inlet valve here shows 990-995 Ohms

Tried that, thanks. Didn’t help the clog, but was nice to clean anyways. Haha.

Not yet. I still need to figure out where to find it and how to remove it.

I’m guessing I will need to open the dishwasher from the back?

I can hear water spraying inside yes.

Drain solenoid – I’m new to this stuff, how would I go about checking if it actuates a valve?

Thank you. I have moved the unit from the wall, and was able to blow the water from the tube into the drain. So I think its something to do with within the dishwasher itself.

Just responded. The tubes are fine. So is the filter, and as much as my hand can get into just after the filter.
